Hey everyone! Welcome back to Part 4 of our series on floor troughs! If you haven’t caught up on the earlier parts, no worries—you can find them here:
Part 1: [https://bit.ly/3ZCv10c](https://bit.ly/3ZCv10c)
Part 2: [https://bit.ly/3RtPjHj](https://bit.ly/3RtPjHj)
Part 3: [https://bit.ly/3Rq916L](https://bit.ly/3Rq916L)
Today, we’re diving into IMC's specialty floor troughs, designed for unique applications. These are crafted right here in the USA at our factory in Amityville, NY, using high-quality 300 series stainless steel.
First up, let’s take a look at four standout models: **#IDFD**, **#FDSS**, **#FMT**, and **#FTC**.

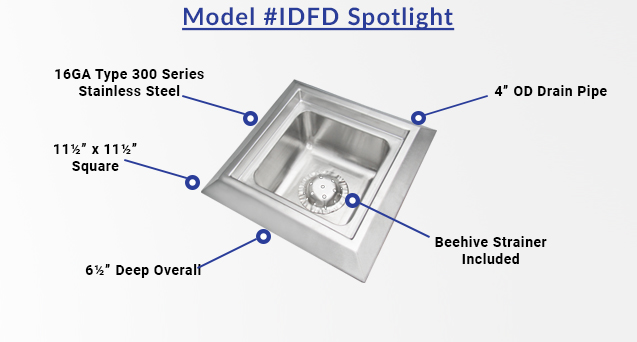

### **Model #IDFD: The Ultimate Leak Protector**
This is an indirect floor drain that’s perfect for capturing and preventing all kinds of leaks. Equipped with standard weep holes and a clamping flange for a waterproof membrane, it ensures that no leaks reach your ceilings or floors.
Constructed from 16-gauge 300 series stainless steel, it has a depth of 6½ inches. The standard size is 11½†x 11½†with a 4-inch drain pipe and a standard beehive strainer. Here’s a quick visual:

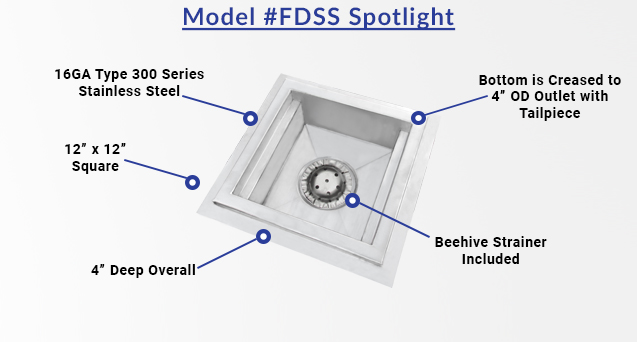

### **Model #FDSS: The Overflow Savior**
Next, we have the **#FDSS**, IMC’s floor drain sump sink. This model is designed to handle overflow situations effectively, ensuring proper liquid drainage. Its recessed flange supports floor tiles and creates a grout pocket for added stability.
Made from 16-gauge 300 series stainless steel with a depth of 4 inches, it comes in a standard size of 12†x 12†with a 4-inch drain pipe and a standard beehive strainer. Unlike inferior plastic drains, this one offers unmatched durability.
Check out this detailed view:

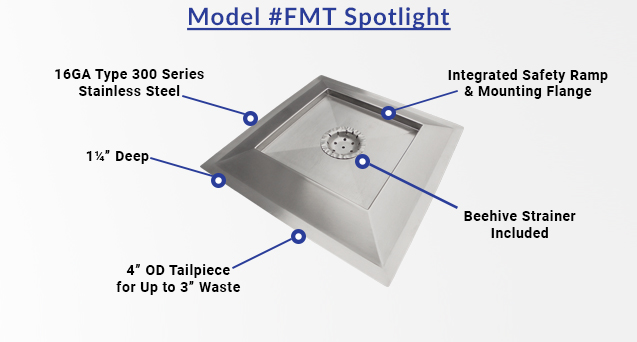

### **Model #FMT: The Low-Volume Drain Specialist**
Now, let’s talk about the **#FMT**, a flush-mounted floor trough. Ideal for low-volume liquid waste removal, it’s often placed under ice machines, beverage tables, pot sinks, or walk-in refrigerators.
Installation is straightforward—just connect the trough waste outlet through a cored hole to the plumber’s waste pipe. Constructed from 16-gauge 300 series stainless steel with a depth of 1¼ inch, it includes a beehive strainer and a 4-inch OD tailpiece for up to 3-inch waste.
Take a look:

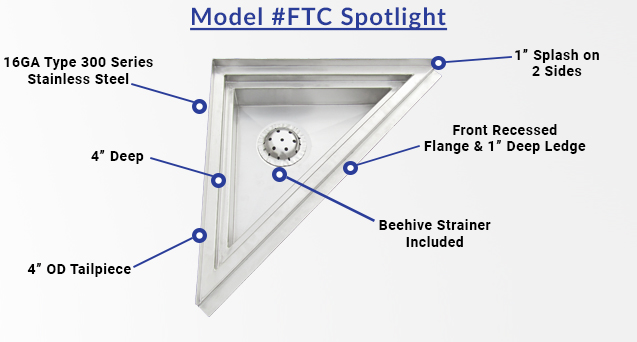

### **Model #FTC: The True Stainless Steel Corner Floor Trough**
Finally, meet the **#FTC**, IMC’s latest innovation—a true stainless steel corner floor trough. In commercial spaces where floor space is limited, corner equipment is a game-changer.
This model fills dead corner space efficiently while protecting walls from splashing water. Made from 16-gauge 300 series stainless steel and 4 inches deep, it features a 1-inch splash guard on two sides and a triangular shape that fits perfectly into any corner.
Here’s a closer look:
These four models showcase IMC’s commitment to engineering excellence. Each can be customized with various options to suit your specific needs. For more details, check out our price book or specific trough spec sheets. To explore more of IMC’s offerings, click [here](https://example.com).
---
As always, feel free to share this post with your friends on social media. Let’s spread the word about how these specialty floor troughs can transform your workspace!
